Solder a OBDII connector

  • spit64
  • spit64's Avatar Topic Author
  • Offline
  • Premium Member
  • Premium Member
More
6 years 8 months ago - 6 years 8 months ago #26521 by spit64
Solder a OBDII connector was created by spit64

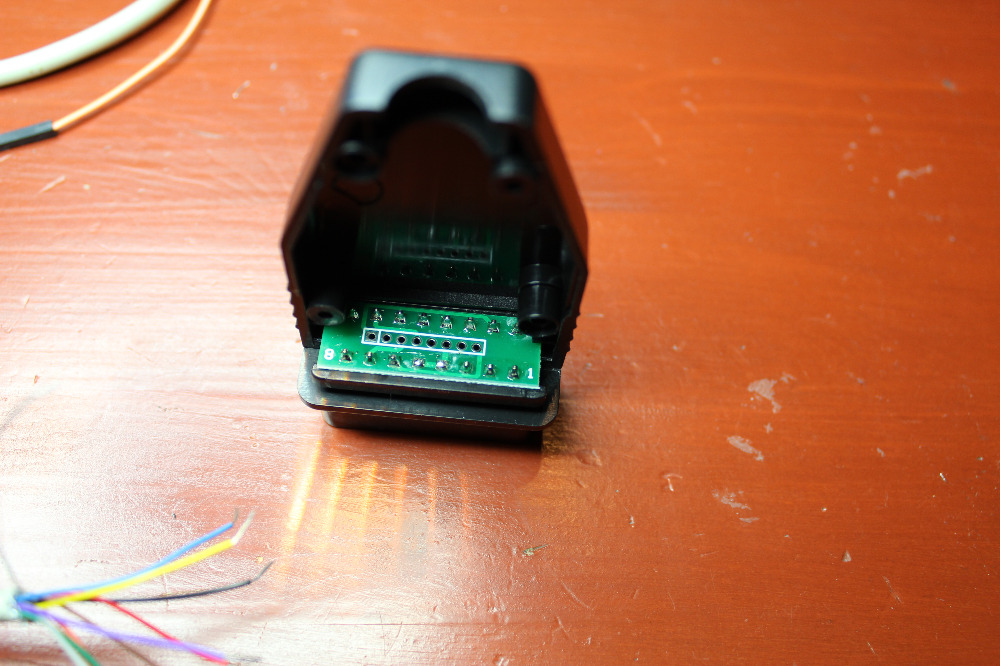

One thing I notice when a bought a new OBDII connector, signal ground, and chassis ground is connected internally, that for me is not so smart but I don't know, in the other end I have a DB9 connector that I connect to an Arduino board for some testing and learning and I think it will not be a clean signal with chassis ground but this is the way connector is constructed I was surprised, no Chinese connector. any thoughts about it I guess scan tools connector are the same. Pin 4 and 5
Attachments:
Last edit: 6 years 8 months ago by spit64.
The following user(s) said Thank You: aboudi.naddaf

Please Log in or Create an account to join the conversation.

More
6 years 8 months ago #26525 by Andy.MacFadyen
Replied by Andy.MacFadyen on topic Solder a OBDII connector
That is a fairly normal practice though not ideal.
" We're trying to plug a hole in the universe, what are you doing ?. "
(Walter Bishop Fringe TV show)
The following user(s) said Thank You: Noah, aboudi.naddaf
